उत्पत्ति के प्लेस:
हेंगशुई, हेबेई, चीन
ब्रांड नाम:
Heng Yuan
प्रमाणन:
ISO9000
मॉडल संख्या:
12-3/4"
संपर्क करें
वीडियो
वीडियो
वीडियो

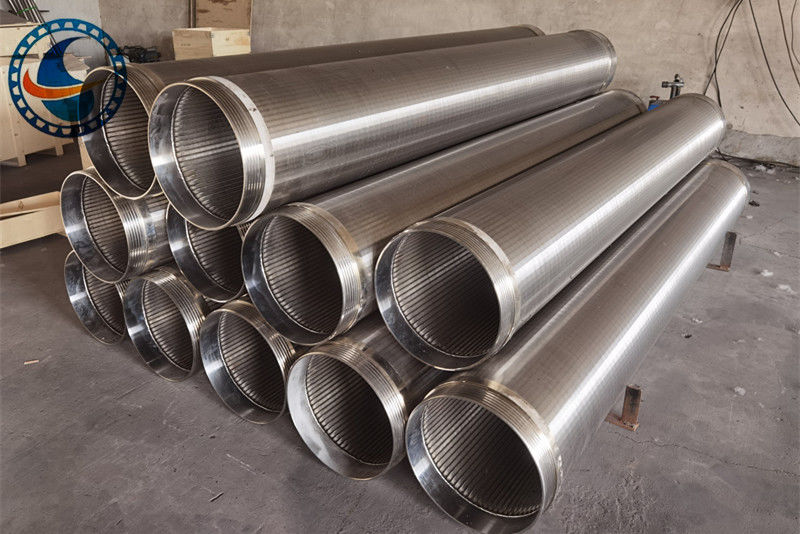

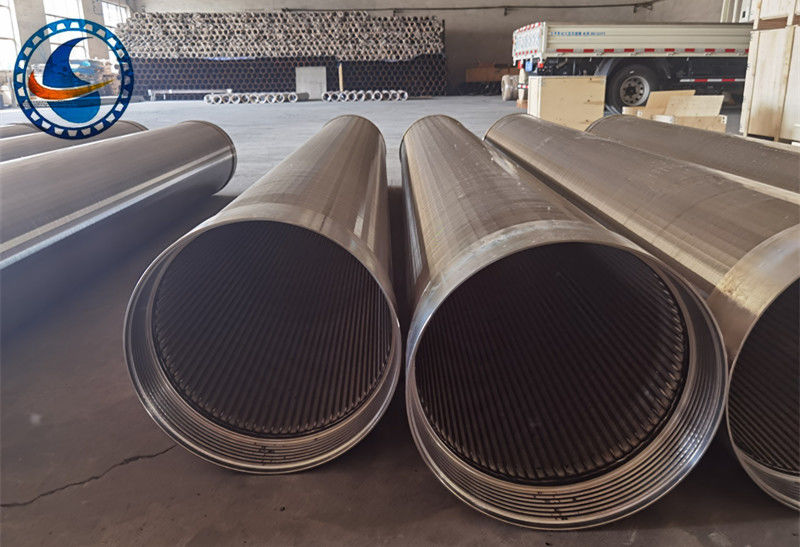

Commonly referred to as continuous slot or wire wrap screen, continuous slot water well screen was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands in the North Central United States.
These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production.
Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.
|
Name:Continuous Slot Rod Based Water Well Screen,Oil Well Sand Screen,Water Well Screen, Wedge wire screen,Screen tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
|||||||
| Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc. | |||||||
| Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc. | |||||||
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) | |||||||
| Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container) | |||||||
| Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc. | |||||||

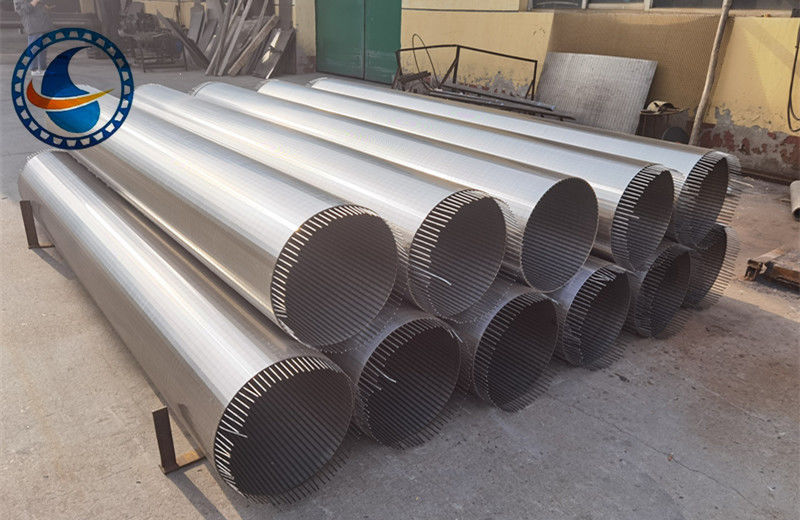

| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. | |||||||

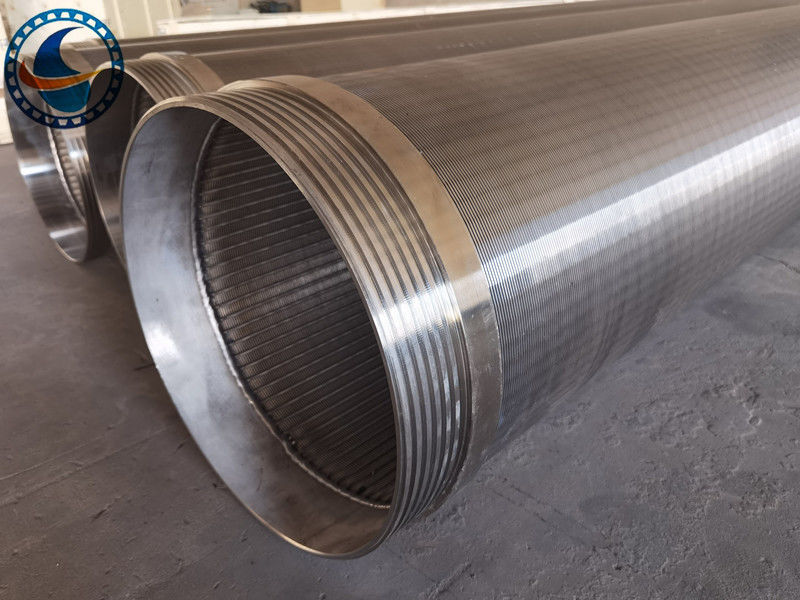

| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. | |||||||
|
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
|||||||
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tenslie Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.0*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.0*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.0*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.2*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*4.6(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.0*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.5(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.5(Width*height) | ø4.0MM×64 |
Special specification can be made according to your need !
Water Well,
Food &Beverage Screens,
Pharmaceutical & Biological industries,
Refining & Petrochemical,
Water Treatment & Liquid / Solids Separation,
Mineral & Aggregate Processing,
Pulp & Paper Screens.
